〰️ Traps, Cleanouts & Backwater Valves
Traps, Cleanouts & Backwater Valves
Chapter 8 covers the three critical maintenance and protection elements of a drainage system. Traps hold the water seal that blocks sewer gas — their depth and type are strictly regulated. Cleanouts are the access points that allow the drain system to be rodded when blocked. Backwater valves prevent sewage from flooding back into the building when the public sewer surcharges.
§ 801
Traps Required
Every fixture connected to a drainage system must have a trap
Each fixture directly connected to the drainage system shall be equipped with a water-seal trap. No fixture shall be double-trapped.
Every single plumbing fixture — lavatory, WC, shower, floor drain, sink — needs its own trap between it and the drain pipe. You cannot put two traps in series on one fixture (double-trapping creates air pockets that destroy both seals).
Sewer gases — including hydrogen sulfide (H₂S), methane, and ammonia — are toxic and explosive. The water-filled trap is the only physical barrier between the open drain and the living space. Remove the trap or allow its seal to evaporate, and gas enters the building.
In Philippine bathroom renovations, plumbers sometimes skip traps on floor drains to save cost — especially in older walk-in shower conversions. This is a direct code violation and health hazard. Always verify floor drain traps are present before closing up floors.

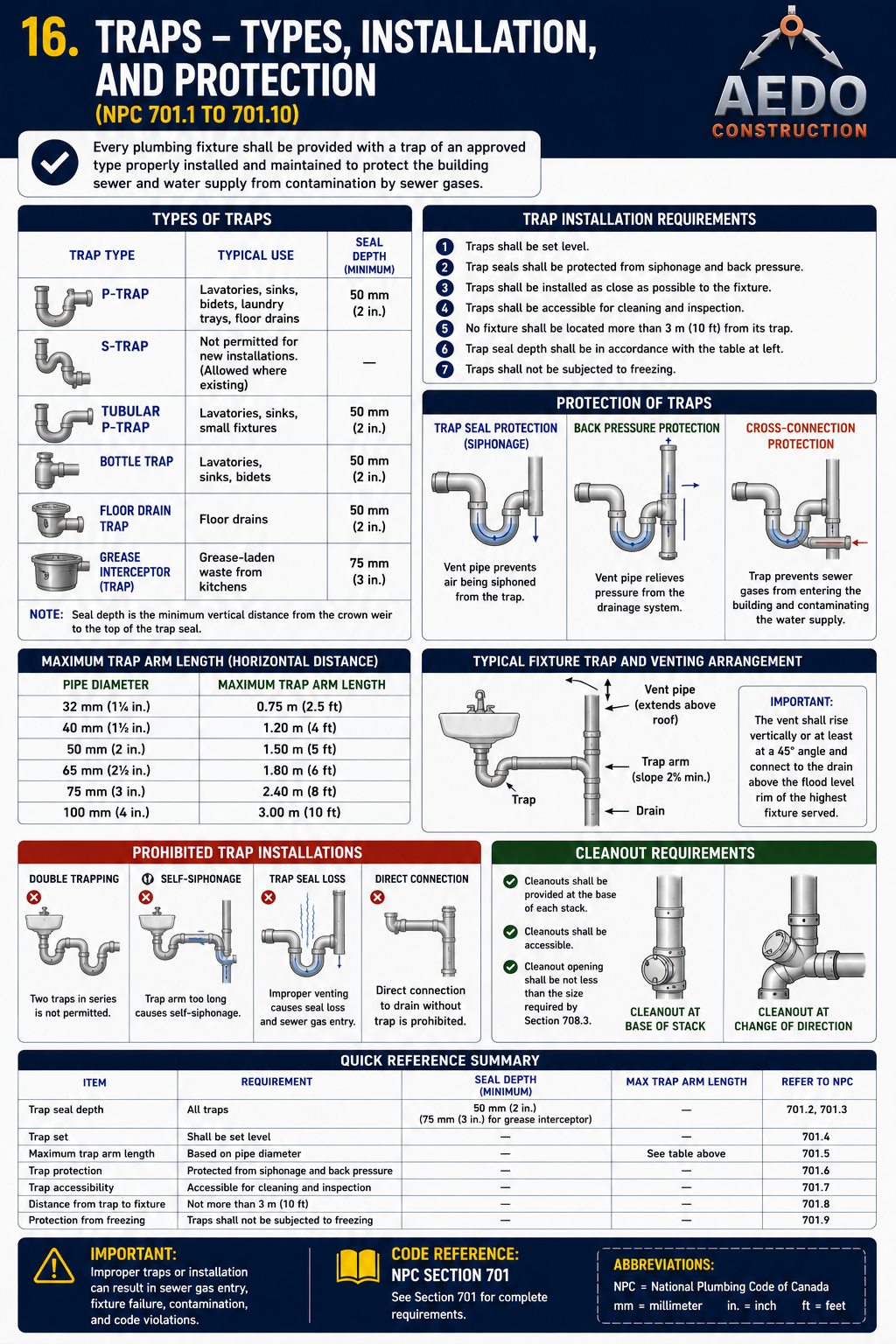

How a trap works
P-trap water seal blocks sewer gas. Minimum seal depth 50mm, maximum 100mm. Every fixture trap must be vented to prevent siphonage and back-pressure. (NPC §701)
§ 802
Trap Seal Depth
The water seal must be exactly the right depth — too shallow or too deep both cause problems
Each fixture trap shall have a water seal of not less than 50 millimetres (2 inches) and not more than 100 millimetres (4 inches), except where special designs require deeper seals.
The trap must hold a column of water at least 50mm deep. This depth provides enough pressure to resist both siphonage (vacuum pulling seal out) and back-pressure (gas pressure pushing through seal). More than 100mm creates too much resistance to self-cleaning flow.
A 50mm water column exerts about 490 Pa of pressure — enough to resist normal sewer gas pressure fluctuations. Too shallow and any pressure differential destroys the seal. Too deep and solids collect in the trap bottom.
Seal depth reference
Too shallow (<50mm) = seal easily lost. Correct (50–100mm) = adequate pressure. Too deep (>100mm) = solids collect at bottom, trap clogs. (NPC §802)
Common Violations — §802 Trap Seal
✗
Bell-trap / bucket trap (pre-1990s construction)
These loose-cup traps rely on a water seal that evaporates within days in a dry floor drain. Common in older Philippine commercial buildings.
Replace with deep-seal P-trap with primer or install drain cover
✗
Unused floor drain with no water seal (dry trap)
Infrequently-used floor drains in storage rooms, utility rooms, and parking areas dry out. No water = no seal = sewer gas entry.
Install trap primer, glycol-filled trap, or deep-seal floor drain rated for infrequent use
✗
Shallow chrome P-trap set too high
Cheap chrome P-traps can have seal depths below 50mm if installed with the outlet too close to the trap weir level.
Verify seal depth with ruler when installing — PVC P-traps are more consistent
§ 803
Prohibited Traps
Trap designs that are banned — and why each one fails
Trap types — approved vs. prohibited: P-trap (most common, approved — self-cleaning, consistent 50mm seal); S-trap (prohibited — self-siphons); bottle trap, floor drain trap, grease trap, sand interceptor. Minimum seal depth: 50mm for all fixture types. Interceptors shall be accessible for cleaning and retention of harmful materials. (NPC §803 / §1002)
Prohibited Traps
S-Trap — self-siphons when fixture drains fast
Bell Trap / Bucket Trap — shallow seal evaporates within days
Drum Trap — solids collect at bottom, not self-cleaning
Running Trap (double trap) — air pocket trapped between two seals destroys both
Crown-vented trap — vent connects at top of trap, air path destroys seal
Trap with interior partitions — flow obstructions cause deposit buildup
Approved Trap
P-Trap (only) — the standard for all fixtures
Consistent 50–100mm seal depth
Self-cleaning — smooth interior, no obstructions
Smooth interior radius — no 90° internal turns
Single-trap per fixture only — no double trapping
Water closet: integral trap in bowl is approved
S-Traps in Philippine Construction: S-traps were the standard configuration in Filipino plumbing for decades — many pre-2000 buildings still have them. If you see a trap pipe that goes straight down from the fixture outlet and the trap curves downward (not toward the wall), it is an S-trap. Under the NPC 2000, these should be replaced during any renovation. The fix is simply to reconfigure the drain arm to run toward the wall and connect a P-trap.
§ 804
Setting Traps
Maximum distance from fixture outlet to trap weir
The trap shall be set as close to the fixture as possible. The vertical distance from the fixture outlet (drain hole at bottom of fixture) to the trap weir (top of the water seal) shall not exceed 600mm.
A long tailpiece (the pipe between fixture and trap) allows the fast-moving stream from a full basin drain to carry kinetic energy into the trap that can siphon the seal. The shorter the tailpiece, the less momentum the draining water has when it reaches the trap.
Common Violations — §804
✗
Trap buried too far below floor slab
When the floor drain is installed and the slab is poured too thick, or a raised floor is installed, the trap weir may end up more than 600mm below the floor drain inlet.
Use adjustable floor drain body or install within 600mm of finished floor surface
✗
Lavatory tailpiece extended with multiple couplings
Extending the tailpiece with extra pipe sections to reach a distant trap violates the 600mm rule and creates siphonage risk.
Relocate trap closer to fixture; use P-trap with adjustable arm
§ 805
Trap Arm
The trap arm must slope toward the drain — never level or back-pitched
The trap arm is the horizontal pipe between the trap outlet and the vent connection (or drain stack). It must:
- Slope toward the drain at minimum 1% (10mm per meter)
- Never run level — standing water in the trap arm evaporates and breaks the seal
- Never be back-pitched — this creates a standing water section that builds up solids
- Not exceed the maximum distance from trap weir to vent (see §704)
A level or back-pitched trap arm holds standing water between uses. That water and any soap scum or organic material in it will decompose, causing odors — even if the trap seal itself is intact. The slope ensures the arm drains clean after each use.
Trap arm slope — correct vs wrong
Correct: trap arm slopes 1% (10mm/m) toward drain — self-draining. Wrong: level arm traps standing water → stagnation, odors, and seal loss. (NPC §805)
§ 806
Cleanouts Required — Location
Where cleanouts must be installed to allow drain rodding access
Cleanout required locations per NPC §806: ① base of every soil/waste stack (within 300mm of base bend); ② every change of direction greater than 45°; ③ every 15m of horizontal run for 100mm pipe (30m for ≥150mm); ④ junction of building drain and building sewer. Cleanouts must remain accessible — never bury under concrete or tile. (NPC §806, §701.9)
| Location | Cleanout Required? |
|---|---|
| Base of every soil or waste stack | Yes — always |
| Each change of direction >45° in horizontal drain | Yes |
| Building drain (100mm pipe) — horizontal run | Every 15m maximum |
| Building drain (≥150mm pipe) — horizontal run | Every 30m maximum |
| At junction of building drain and building sewer | Yes |
| At each offset in soil/waste stack >45° | Yes — both ends of offset |
Common Violations — §806 Cleanouts
✗
Cleanout buried in concrete or inaccessible behind tile
The most common violation in Philippine construction — cleanouts are installed but then poured over or tiled. When the drain blocks, the entire floor must be broken to access it.
Extend cleanout to surface level with extension fittings before pouring concrete or tiling
✗
No cleanout at base of stack — only a long-sweep bend
A long-sweep bend alone at the base of a stack does not satisfy the cleanout requirement. A cleanout fitting must be within 300mm of the stack base bend.
Install cleanout tee or wye with cleanout plug within 300mm of base bend
§ 807
Cleanout Size
Minimum cleanout fitting and plug size requirements
| Drain Pipe Size | Minimum Cleanout Size | Notes |
|---|---|---|
| 50mm (2") | 50mm | Same size as pipe |
| 75mm (3") | 75mm | Same size as pipe |
| 100mm (4") | 100mm | Same size as pipe |
| 150mm and larger | 100mm min | 100mm is maximum required — standard rodding equipment limit |
§ 808
Access to Cleanouts
Cleanouts must be reachable without removing permanent construction
- Minimum clearance in front of cleanout plug for rodding tool operation: 450mm
- Cleanouts in walls shall be accessible through an access panel — minimum panel size: 300mm × 300mm
- Cleanouts located under concrete slabs: shall be extended to surface with extension fittings and access frame
- Cleanouts inside walls: access door shall be labeled for easy identification during maintenance
In Philippine mid-rise construction, cleanouts at the base of stacks are frequently buried in the podium slab concrete pour. The solution — and what NPC requires — is to install a surface-mounted cleanout access cover plate flush with the finished floor surface, similar to floor drain covers. If you see a project with no cleanout access points on the ground floor, it is almost certainly non-compliant.
§ 809
Backwater Valves
Prevent sewage from flowing back into the building when the public sewer surcharges
Where the drainage system of a building or structure is installed below the crown level of the next upstream manhole cover of the public sewer, a backwater valve shall be installed in the building drain or branch drains serving such areas.
If your building's drain pipes exit below the street's sewer manhole lid level — which is true for any basement, ground-floor bathroom near low-lying streets, or building in a flood-prone area — sewage from the public sewer can flow backwards into your building during sewer surcharging. A backwater valve (one-way flap) prevents this.
During heavy rain events (common in the Philippines' rainy season), the public sewer can fill completely. The excess pressure forces sewage backwards through any drain pipe connected below the surcharge level — flooding toilets, floor drains, and showers with raw sewage. The backwater valve closes automatically when reverse flow begins.
Metro Manila specific: Many areas of Metro Manila (Paco, Mandaluyong, Malabon, Navotas) experience sewer surcharging during typhoon season. Any building on a low-lying street or with basement bathrooms in these areas should have backwater valves — not just in the building drain but on every fixture branch below grade. Many insurance policies in flood-prone areas require it.
Backwater valve operation
Backwater valve installed in building drain. During sewer surcharge, the flap closes automatically — sewage stays in the sewer, building is protected from backup. Valve must remain accessible; inspect and clean annually. (NPC §809)
| Backwater Valve Requirement | Specification |
|---|---|
| Type | Gate, ball, or approved flap type — positive closure under back-pressure |
| Location | In building drain or branch — accessible for inspection and cleaning |
| Access | Must have access cover — not buried under slab |
| Dual backwater valve | For critical below-grade bathrooms: install one on main drain AND one at each fixture branch |
| Maintenance | Inspect and test annually; clean flap seat — debris prevents full closure |
Common Violations — §809 Backwater Valves
✗
No backwater valve on ground-floor drains in flood-prone areas
Commercial buildings on low-lying streets often have no backwater protection on their ground-floor drain lines, leading to sewage backup during typhoon season.
Install backwater valve on each branch serving ground-floor fixtures in flood-risk areas
✗
Backwater valve installed but inaccessible
Often the valve is installed correctly but then the access cover is buried under epoxy flooring or concrete topping.
Install access box with cover plate flush with finished floor — clearly labeled
